3U VPX Module
AMD Zynq UltraScale+ MPSoC
ZU4 ZU5 ZU7
Vita 57.1 FMC HPC Slot
Board Management Controller
eMMC Up to 256GB
Smart Power Management PMBus
16-Ports 16-Lanes PCIe Gen2 Switch
4-Ports USB HUB
VPX Vita 65.0 OpenVPX Interface
Up to 8GB Processing System DDR4-2400
Up to 2GB Programmable Logic DDR4-2400
AMD Zynq Ultrascale+ MPSoC ZU4 ZU5 ZU7
specifications
- 3U VITA 46.0 46.4 65.0 57.1 Compliant
- AMD Zynq UltraScale+ MPSoC
- ZU4/ZU5/ZU7 CG/EG/EV FBVB-900 Package
- Up to 8GB DDR4-2400 64-bit PS memory with 8-bit ECC
- Up to 2GB DDR4-2400 16-bit PL memory
- Up to 256GB eMMC (V4.51)
- MRAM 512KB
- On-board PCIe Gen2 Switch 16-Lanes 16-Ports with NT support
- 4x MGT on VPX-P1 Expansion Plane
- 1x Display Port 1.2 Video Out on VPX-P2
- 2x ETH 1000Base-X/SGMII on VPX-P1 Control Plane
- 2x ETH 1000Base-T on VPX-P2
- 4x USB 2.0, 1x SATA 3.1 on VPX-P2
- 20x LVCMOS or 10x LVDS GPIO on VPX-P2
- 2x RS.232/422/485, 1x CAN 2.0B on VPX-P2
- FMC HPC site with 90x IO / 45x LVDS, 10x MGT
- Board Management Controller ARM Cortex-M3 based
- Smart Power Management using 4x LTM467x with PMBus
- VPX System Controller
- Air Cooled and Conduction Cooled
Typical Applications
- MILCOM, Software Defined Radio, MIMO
- Situational Awareness Systems
- Electronic Warfare, Signal Intelligence
- LIDAR/RADAR/SONAR Systems
- Advanced Multi-Axes Motors Control
- Video CODEC and Signal Processing
Description

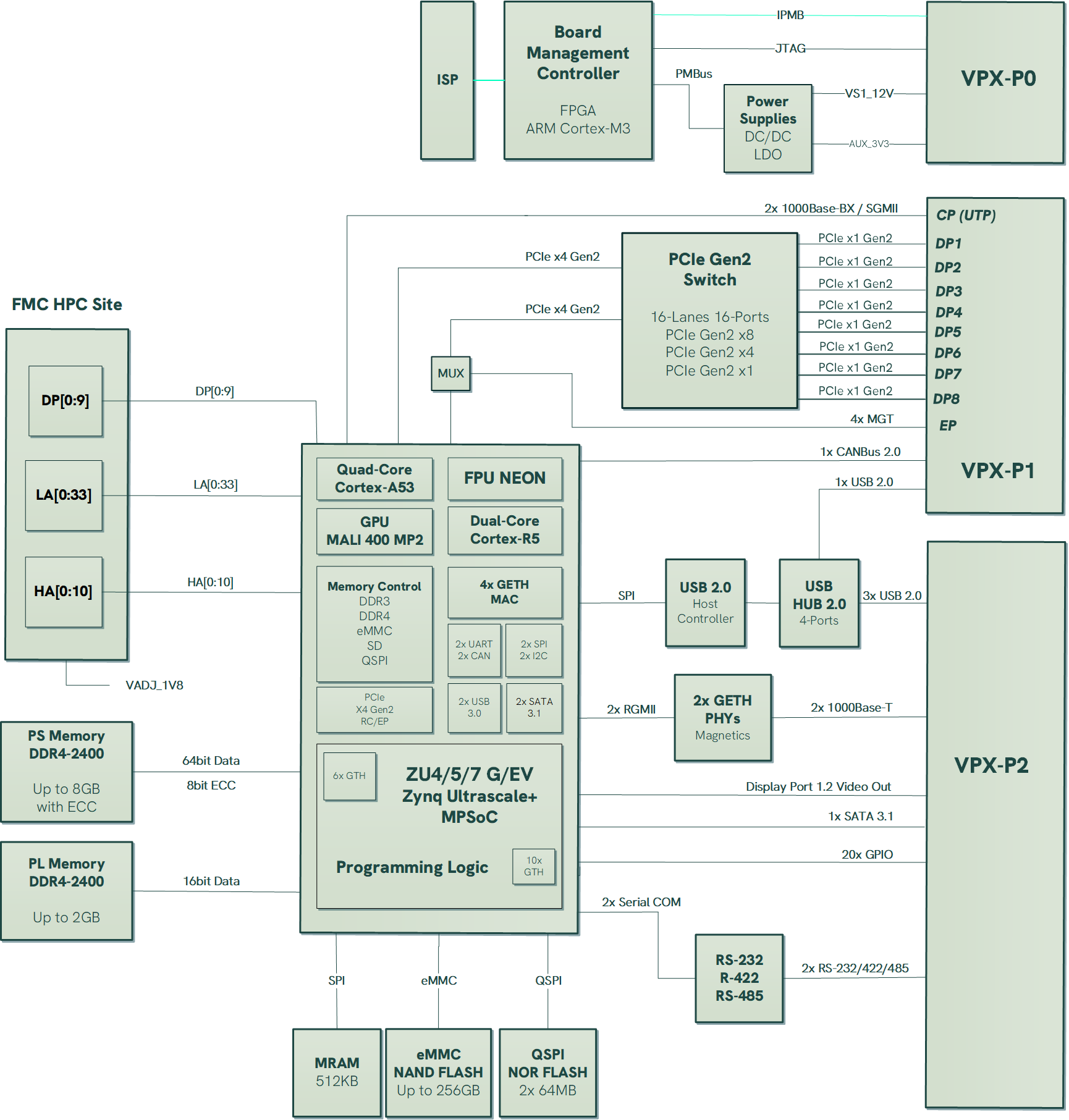

PanaTeQ’s VPX3-ZU2 is a 3U OpenVPX module based on the Zynq UltraScale+ MultiProcessor SoC device from AMD.
The Zynq UltraScale+ integrates a Quad-core ARM Cortex-A53 based Application Processing Unit (APU), a Dual-core ARM Cortex-R5 based Real-Time Processing Unit (RPU), a ARM MALI-400 based Graphic Processing Unit (GPU), a Video CODEC H.264/H.265 (EV devices only) and an UltraScale+ Programmable Logic (PL) in a single device. It also includes on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.
The board can be ordered with different versions of the Zynq UltraScale+ family of devices, coupled up to 8GB 64-bit DDR4-2400 Processing Memory with 8-bit ECC.
Up to 2GB 16-bit of DDR4-2400 is also available as the Programmable Logic Memory, allowing data streaming applications such as video CODEC and signal processing.
Up to 256GB of soldered eMMC managed NAND Flash is available for local data storage.
The VPX3-ZU2 uses four advanced DC/DC power modules from Linear Technology with PMBus and PanaTeQ’s Smart Power Management technology.
For front-end I/O interfaces, an on-board FMC site compliant to the Vita 57.1 HPC standard with 90 SE IO (45 Diff Pairs) and 10 MGT, allowing a wide range of applications such as Software Defined Radio, Video Camera Processing, advanced Multi-Axes Motors controller, Multi-Gig Ethernet Communications, LIDAR/RADAR/SONAR.
The board can act as a Single Board Computer in the VPX system thanks to its on-board PCIe Gen2 Switch. When the VPX3-ZU2 is System Controller, it can manage up to eight 3U OpenVPX slots with a PCIe x1 Gen2 link per slot. There is no need to add any SBC in the VPX System, improving Size, Weight, Power and Cost (SWaP-C).
A large number of the Zynq Ultrascale+ PS peripherals are available on the VPX backplane: 2x ETH 1000Base-T, 4x USB 2.0, 1x SATA 3.1, 1x CAN-2.0B, 2x RS-232/422/485, 4x MGT, 20x GPIO, Video Out Display Port 1.2.
The air cooled PanaTeQ System Development Kit VPX3-ZU2-PSDK is available for the developers and includes a lab chassis, the VPX3-ZU2 and RTM-ZU1 boards, a PentaLinux BSP, the PanaTeQ FPGA Design Kit (PAN-FDK) and cables.
