3U VPX Module
AMD Versal Prime Gen2
AMD Versal AI Edge Gen2
Vita 57.1 FMC Slot
AMD Versal Prime & AI Edge Gen2
Board Management Controller
eMMC 256GB
Smart Power Management PMBus
VPX Vita 65.0 OpenVPX Interface
20/40GB LPDDR5 Memory
specifications
- 3U VITA 46.0, 46.4, 46.6, 65.0 Compliant.
- Optional SOSA Aligned version VPX3-VERSA1S.
- AMD Versal™™ Prime & AI Edge Gen2 Series SSVA2112 Package.
- Versal™ Prime Gen2: 2VM3558/2VM3654/2VM3858.
- Versal™ AI Edge Gen2: 2VE3558/2VE3858.
- Up to 8 Arm Cortex-A78AE cores.
- Up to 10 Arm Cortex-R52 cores.
- DSP Engines up to 2064.
- AI Engines up to 144 (AI Edge only).
- 20GB or 40GB LPDDR5 with ECC.
- 512MB (2x 2Gb) QSPI NOR, eMMC 256GB, MRAM 512KB.
- Flash-memory-based trusted platform module (TPM 2.0) connected to PS-SPI.
- 8x MGTY on VPX-P1, PCIe Up to Gen5 support.
- 2x ETH 1000Base-X/SGMII on VPX-P1 Control Plane.
- 16x GPIOs on VPX-P2
- 1x ETH 1000Base-T on VPX-P2
- 4x RS232 or 2x Full-Duplex RS422 on VPX-P2
- 1x USB 2.0 on VPX-P1.
- DiplayPort Video Output on VPX-P1.
- FMC site compliant with VITA 57.1 HPC, with 68 single-ended I/Os or 34 differential pairs and 10 MGTs.
- Smart Power Management using DC/DC with PMBus.
- Board Management Controller ARM Cortex-M3 based.
- VPX System and IPMI controllers.
- Air Cooled and Conduction Cooled.
- Optional KVPX connectors.
Typical Applications
- Rugged real-time video processing systems
- AI-based object detection and tracking
- UAV, airborne and autonomous platform vision
- Defense, surveillance and ISR payloads
- Multi-camera sensor fusion systems
- Mission computer video acceleration
- Low-latency video compression and streaming
- Industrial machine vision and inspection
Description

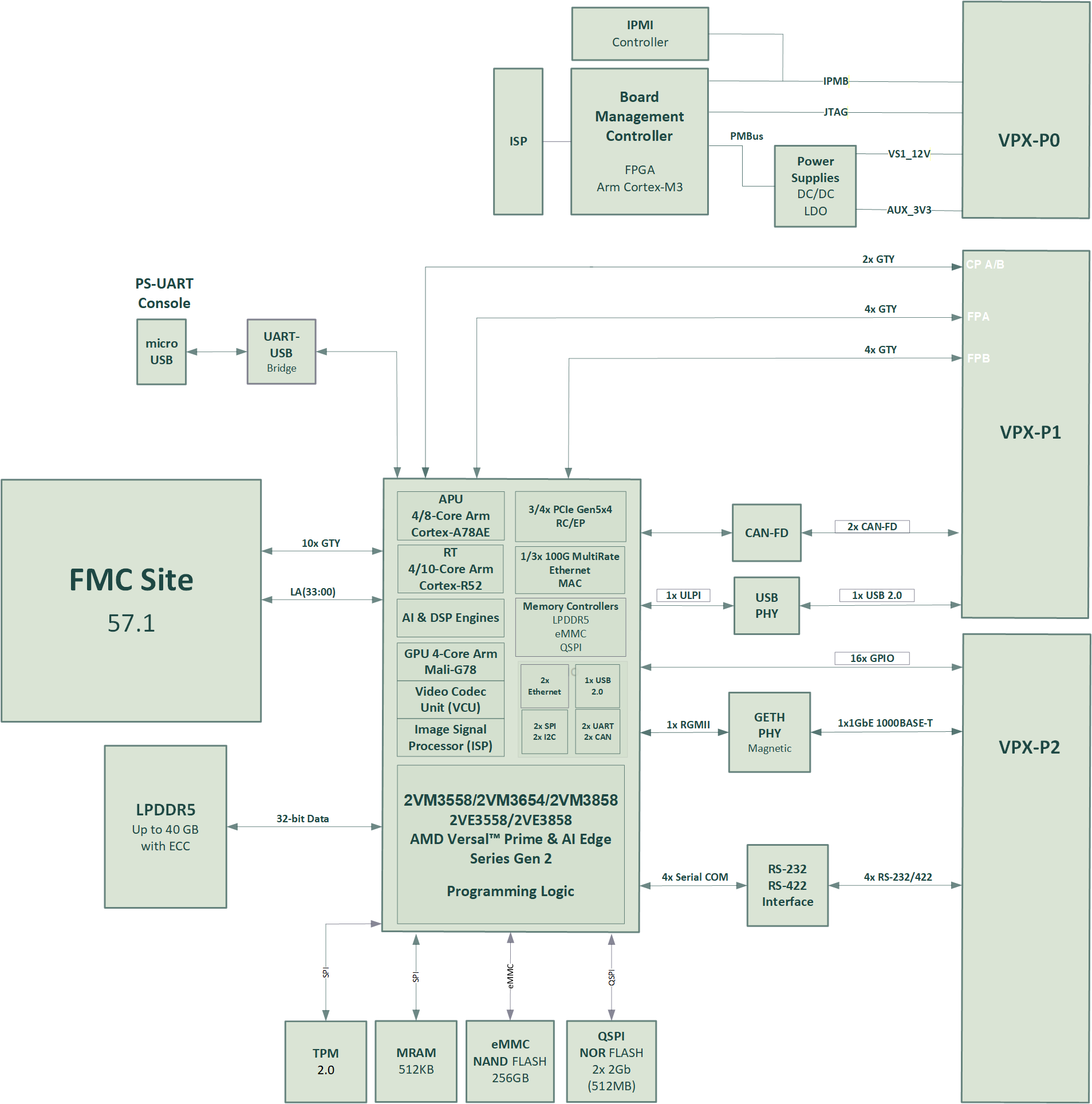

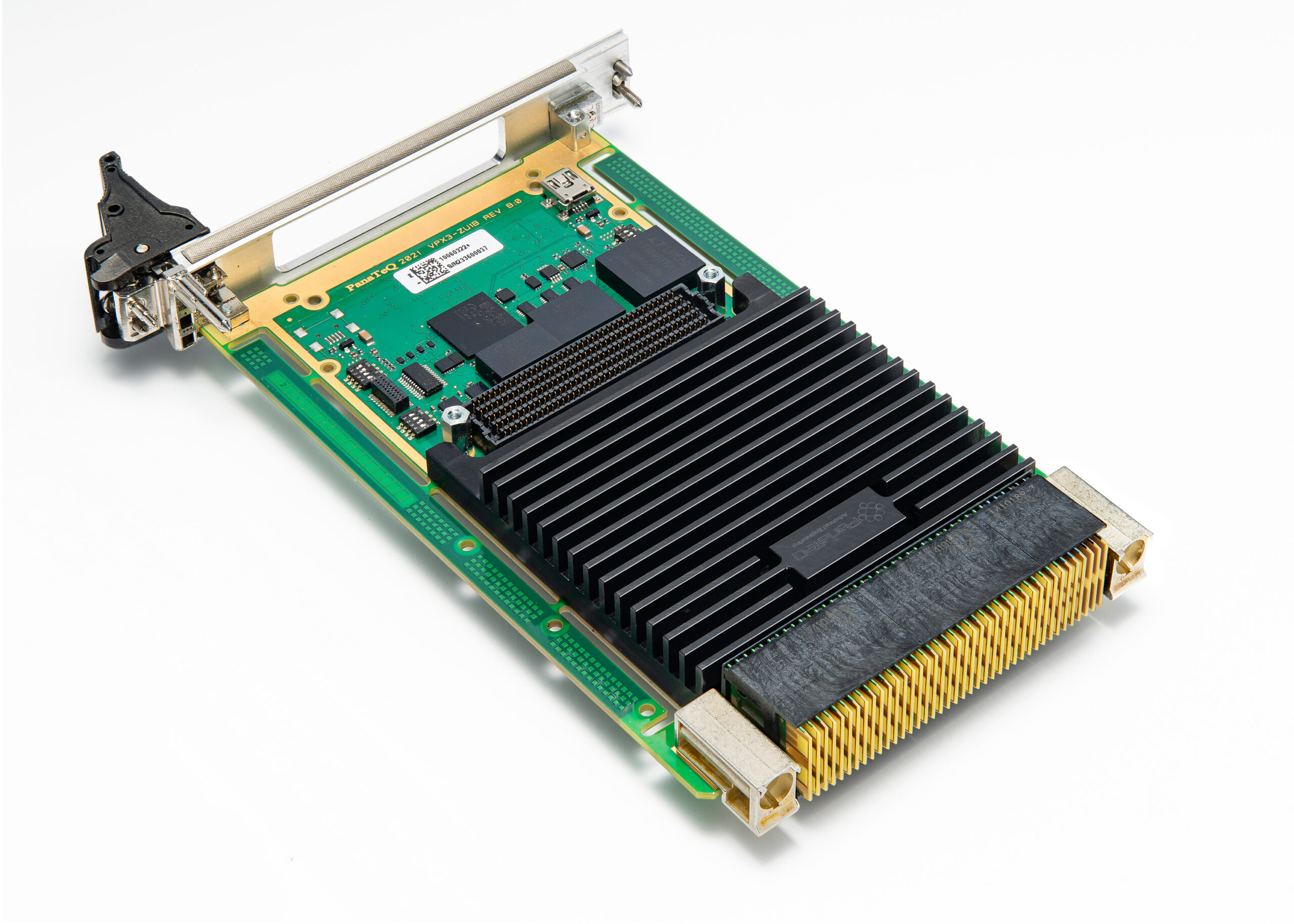

PanaTeQ’s VPX3-VERSA1 is a 3U OpenVPX module based on AMD Versal™ Prime Series Gen 2 or AMD Versal™ AI Edge Series Gen 2 adaptive SoCs.
The VERSAL™ integrates up to 8-core ARM Cortex-A78A based Application Processing Unit (APU), up to 10-core ARM Cortex-R52 based Real-Time Processing Unit (RPU), DSP Engines, AI Engines (AI Edge devices only) and a large Programmable Logic (PL) in a single device. It also includes on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.
The board can be ordered with different versions of the VERSAL™ family of devices, coupled up to 40GB 32-bit LP-DDR5 Memory with ECC.
256GB of soldered eMMC managed NAND Flash is available for local data storage.
The VPX3-VERSA1 uses advanced DC/DC power modules from Analog Devices using PMBus and PanaTeQ’s Smart Power Management technology.
For front-end I/O interfaces, an on-board FMC site compliant to the VITA 57.1 HPC standard with 68 SE IO (34 Diff Pairs) and 10 MGTs, allowing a wide range of applications such as electronic warfare (EW) systems , High-Speed Communication, LIDAR/RADAR/SONAR.
The board can act as a Single Board Computer in the VPX system. When the VPX3-VERSA1 is System Controller, there is no need to add any SBC in the VPX System, improving Size, Weight, Power and Cost (SWaP-C).
A large number of the peripherals are available on the VPX backplane: 1x ETH 1000Base-T, 1x USB 2.0, 4x RS-232 or 2x Full-Duplex RS-422, 16x GPIOs, 1x CAN-FD.
The air cooled PanaTeQ System Development Kit VPX3-VERSA1-PSDK is available for the developers and includes a lab chassis with 3-slots Centralized backplane, the VPX3-VERSA1-A1N-AS and RTM-VERSA1 boards, a PetaLinux BSP, PanaTeQ FPGA Design References and cables.
