3U VPX SDR Module
Zynq UltraScale+ MPSoC
Analog Devices AD9361
FMC-SDR400 AD9361 RFIC
VPX3-ZU1B 3U VPX Zynq MPSOC
specifications
- 3U OpenVPX module, Air-Cooled
- AMD Zynq Ultrascale+ MPSoC ZU9G-1FFVC900E
- 4GB PS DDR4-2400 memory 64-bit, 8-bit ECC
- 1GB PL DDR4-2400 memory 16-bit, no ECC
- 64 GB eMMC managed NAND Flash
- FMC HPC site with 10x MGTs @ up to 16.3Gb/s
- 2 RF Channels, DC to 6 GHz acquisition
- Software tunable Channel Bandwidth 200 kHz-56 MHz
- 2 x Multiple Synchronized Input and output
- AD9361 Dual 12 bits transceivers
- Tunable RF Bandpass Filters
- AD9656 Dual 16 bits AD converter (for baseband RF)
Typical Applications
- Software Defined Radio, Military Communications
- Wireless Infrastructure 3G/4G/5G
- TDD active Antenna Systems
- Electronic Warfare
- Drones and UAVs
- Phase Array RADAR
Description
PanaTeQ’s VPX3-ZU1B-SDR400 is a 3U OpenVPX modules based on the Zynq UltraScale+ MPSoC device from AMD coupled to RadioVerse Analog Devices RF Wideband Transceiver AD9361 for a broad range of applications such as Software Defined Radio, MILCOM, massive MIMO, Phase Array Radar and Electronic Warfare.rnrnPanaTeQ provides solutions for Ruggedized Air-Cooled and Conduction Cooled systems.

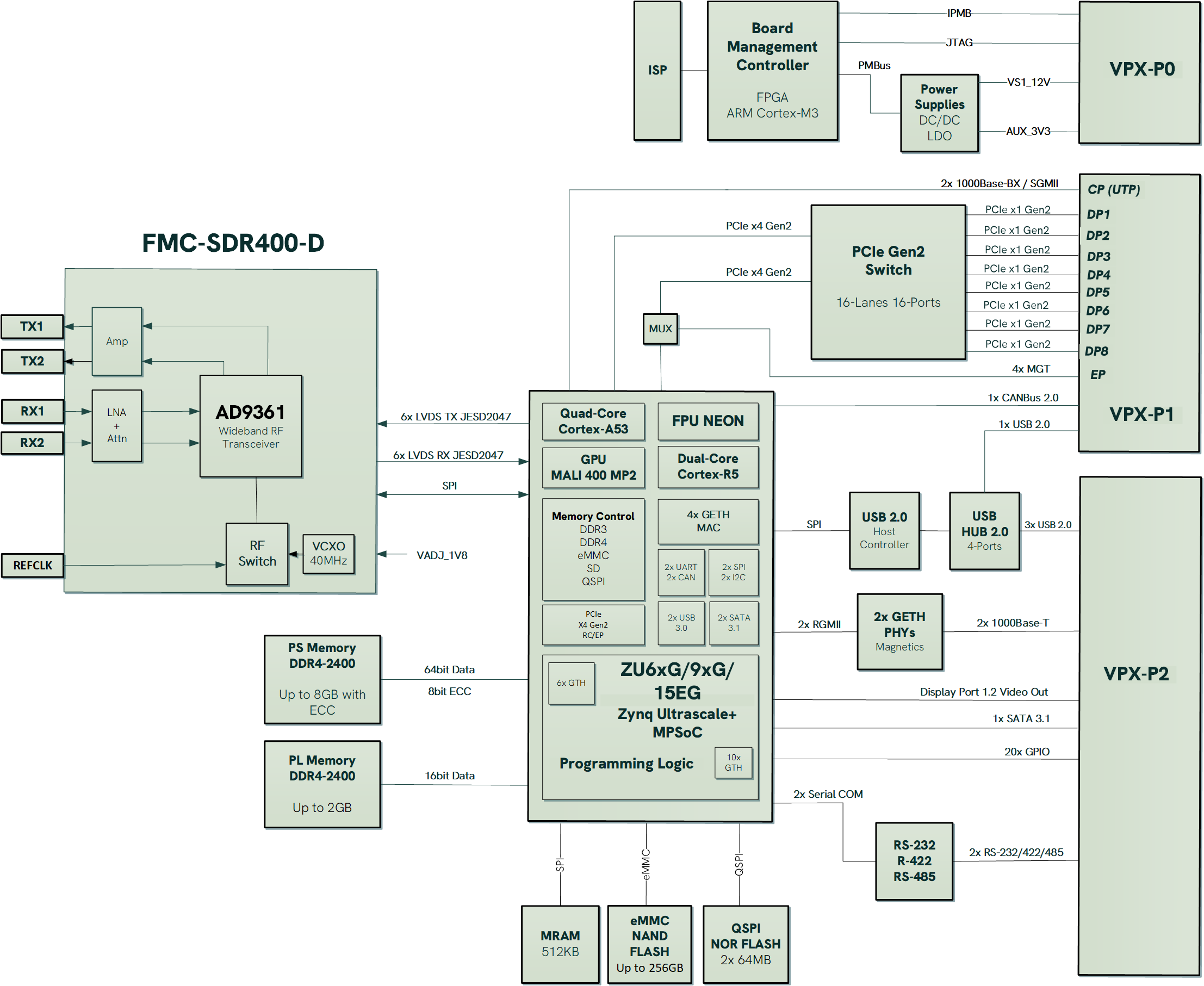

These VPX3-ZU1B-SDR400 module is based on the following PanaTeQ’s sub-modules (boards):rnrnThe VPX3-ZU1B is a 3U OpenVPX module based on a AMD Zynq Ultrascale+ MPSoC with a FMC 57.1 site, HW/SW compatible with ZCU102 Evaluation board from AMD.
The FMC-SDR400 is a FMC based on an Analog Devices AD9361.
