3U VPX SDR Module
AMD Zynq UltraScale+ MPSoC
Analog Devices ADRV9009
FMC-ZU2RF-A ADRV9009 RFIC
VPX3-ZU1B 3U VPX Zynq MPSOC
specifications
- 3U OpenVPX module, Air-Cooled
- AMD Zynq Ultrascale+ MPSoC ZU6/ZU9/ZU15 FFVC900E package
- Up to 8GB PS DDR4-2400 memory 64-bit, 8-bit ECC
- Up to 2GB PL DDR4-2400 memory 16-bit, no ECC
- Up to 256 GB eMMC managed NAND Flash
- FMC HPC site with 10x MGTs @ up to 16.3Gb/s
- ADRV9009 Wideband RF Transceiver
- Dual Transmitter (Tx), Dual Receiver (Rx)
- RF Ext LO Input/Output
- Reference Clock Input
- Two GPIO Input/Output
- RF Coverage 75MHz to 6.0 GHz
- Tx Synthesis Bandwidth (BW) to 450MHz
- Rx Bandwidth: Up to 200MHz
- On-Board VCXO @ 122.88MHz.
Typical Applications
- Software Defined Radio, Military Communications
- Wireless Infrastructure 3G/4G/5G
- TDD active Antenna Systems
- Electronic Warfare
- Drones and UAVs
- Phase Array RADAR
Description

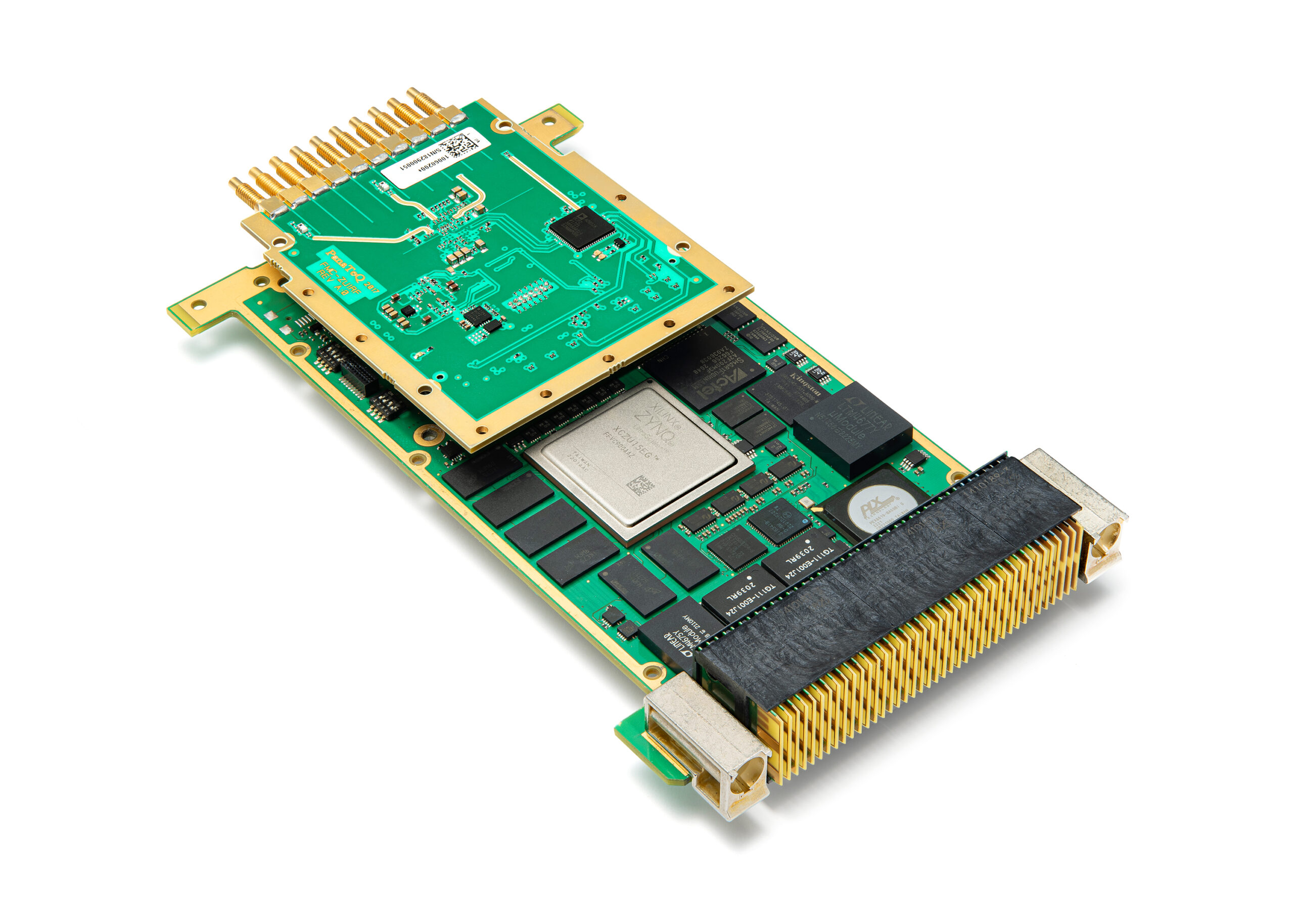

PanaTeQ’s VPX3-ZU1B-SDR-C is a 3U OpenVPX modules based on the Zynq UltraScale+ MPSoC device from AMD coupled to RadioVerse Analog Devices RF Wideband Transceiver ADRV9009 for a broad range of applications such as Software Defined Radio, MILCOM, massive MIMO, Phase Array Radar and Electronic Warfare.
PanaTeQ provides solutions for Ruggedized Air-Cooled and Conduction Cooled systems.

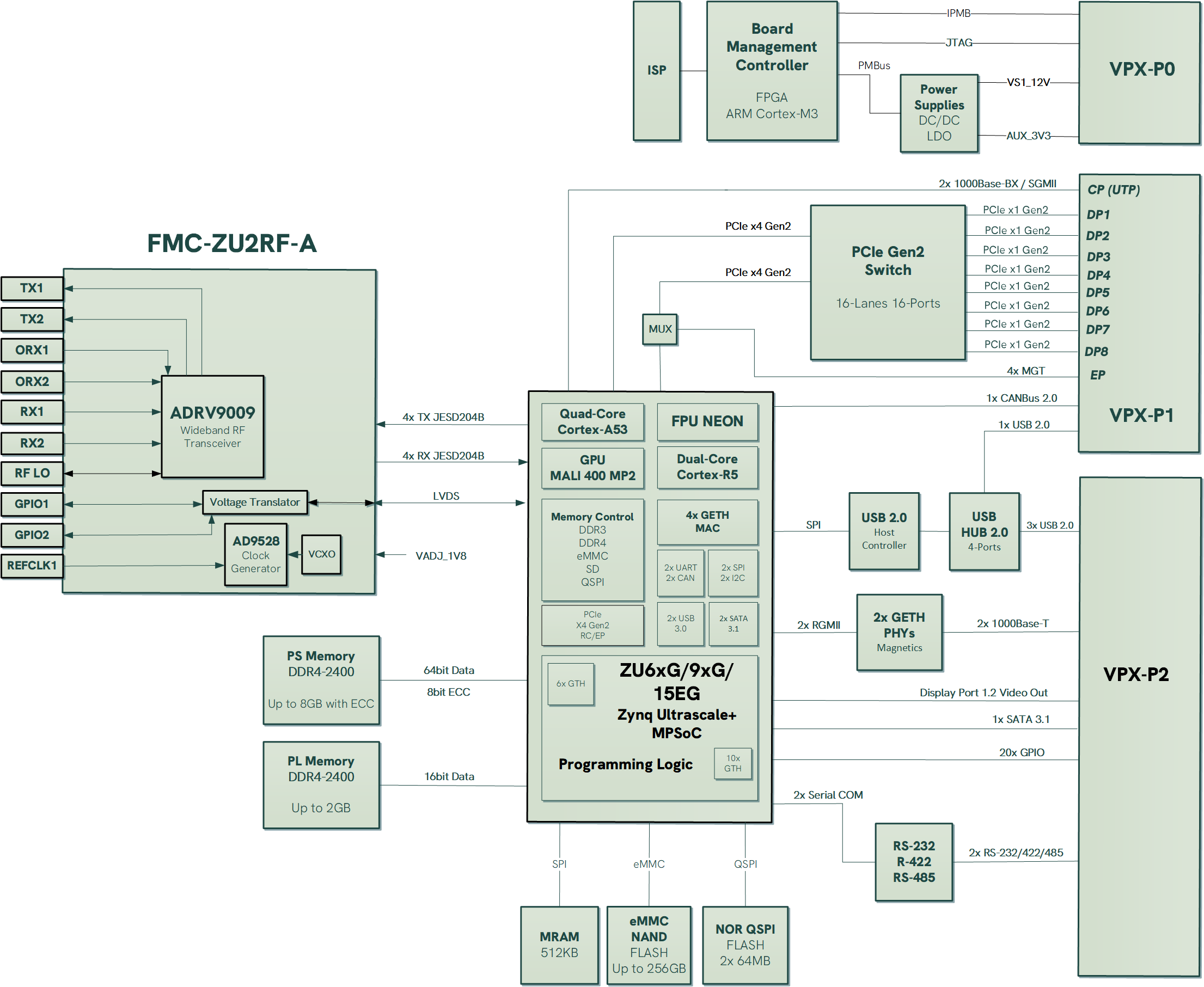

These VPX3-ZU1B-SDR-C module is based on the following PanaTeQ’s sub-modules (boards):
The VPX3-ZU1B is a 3U OpenVPX module based on a AMD Zynq Ultrascale+ MPSoC with a FMC 57.1 site, HW/SW compatible with ZCU102 Evaluation board from AMD.
The FMC-ZU2RF-A is a FMC based on an Analog Devices ADRV9009, HW/SW compatible with ADRV9009 Evaluation Board from Analog Devices.
