VPX3-VERSA2

•  3U VITA 46.0, 46.4, 46.6, 65.0 Compliant

• Optional SOSA Aligned version VPX3-VERSA2S

• Based on AMD Versal Prime Gen1 Series

• VM1502/VM1802 VFVC1760 Package with 44GTY MGTs

• Dual Core Arm A72 up to 1.7 GHz

• Dual Core Arm R5F up to 750 MHz

• DSP Engines up to 1968

• Up to 8GB DDR4-3200 64-bit PS memory with 8-bit ECC

• Up to 8GB LPDDR4-4133 32-bit PL memory

• 512MB (2x 2Gb) QSPI NOR, eMMC 256GB, MRAM 512KB

• Flash-memory-based trusted platform module (TPM 2.0) connected
to PL-SPI

• 12× GTY across VPX-P1 Data and Expansion Planes, supporting one PCIe Gen4 x8 interface and one four-lane Ethernet interface

• 1× additional user-defined GTY serial link on VPX-P1.

• 1x GTY for 1000BASE-X/SGMII on VPX-P1 Control Plane

• 1x GTY local interconnect with PanXIO Altrix Ultrascale+ AU10P

• 16x GPIOs on VPX-P2A

• 1x ETH 1000Base-T on VPX VPX-P2A

• 4x RS232 or 2x Full-Duplex RS422/485 on VPX-P2A

• 1x USB 2.0 on VPX-P1

• FMC+ VITA 57.4 site VAdj = 1.8V with 24x GTY + 38x differential I/O
pairs

• PanXIO PanaTeQ eXtensible I/O Architecture

• Programmable FMC+ and VPX I/O interface based on AMD Artix
UltraScale+ FPGA

• Optional VITA 66.5 Full-Duplex Optical Interfaces for 40Gb (4x 10Gbps) or 100Gb (4x 25Gbps) with 10 nanoRF VITA67.3

• Advanced Smart Power Management using DC/DC with PMBus

• Board Management Controller ARM Cortex Cortex-M3 based

• VPX System and IPMC (Elma based) controllers

• Air Cooled and Conduction Cooled

• KVPX Connectors and Conformal Coating in option

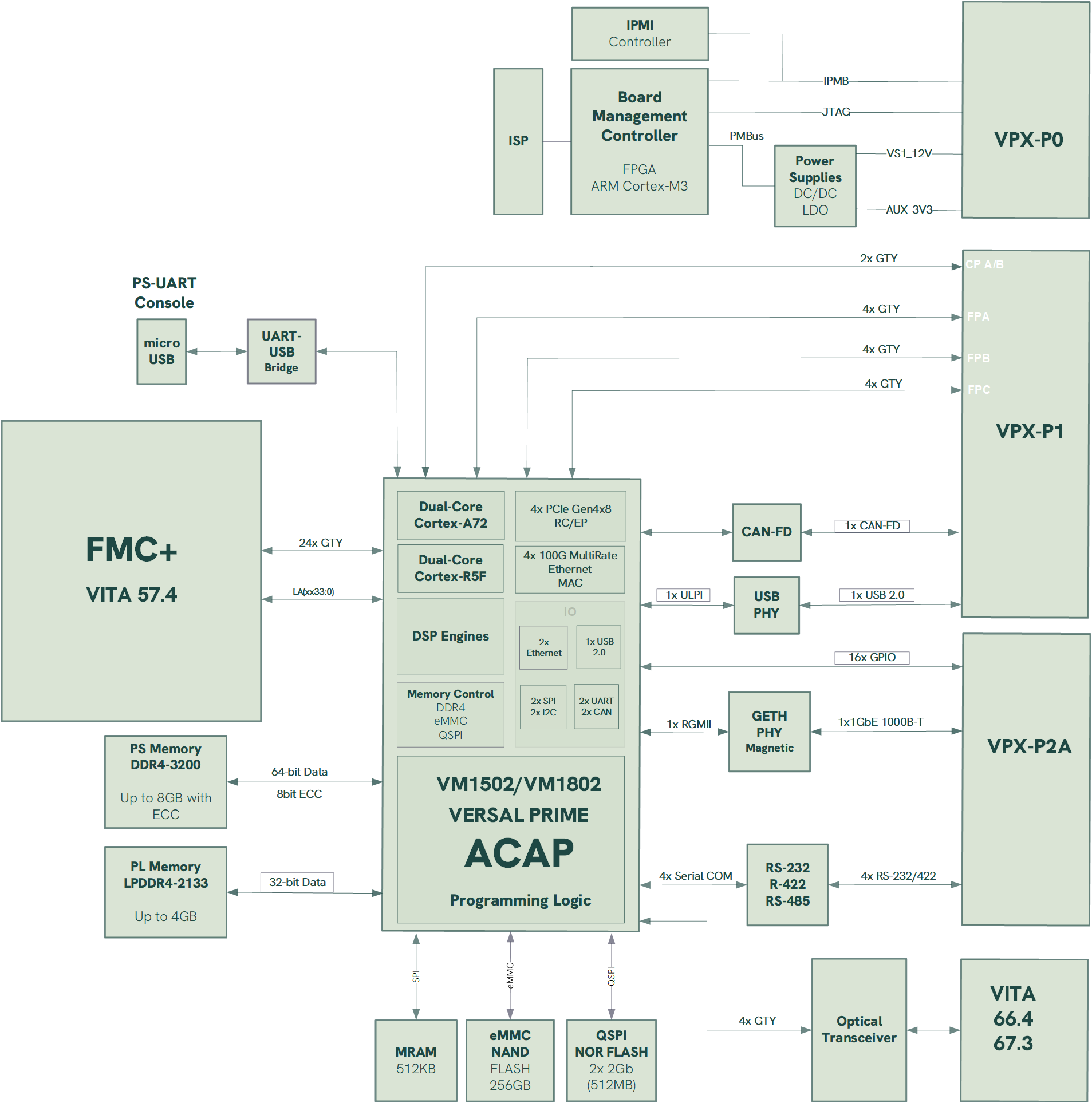

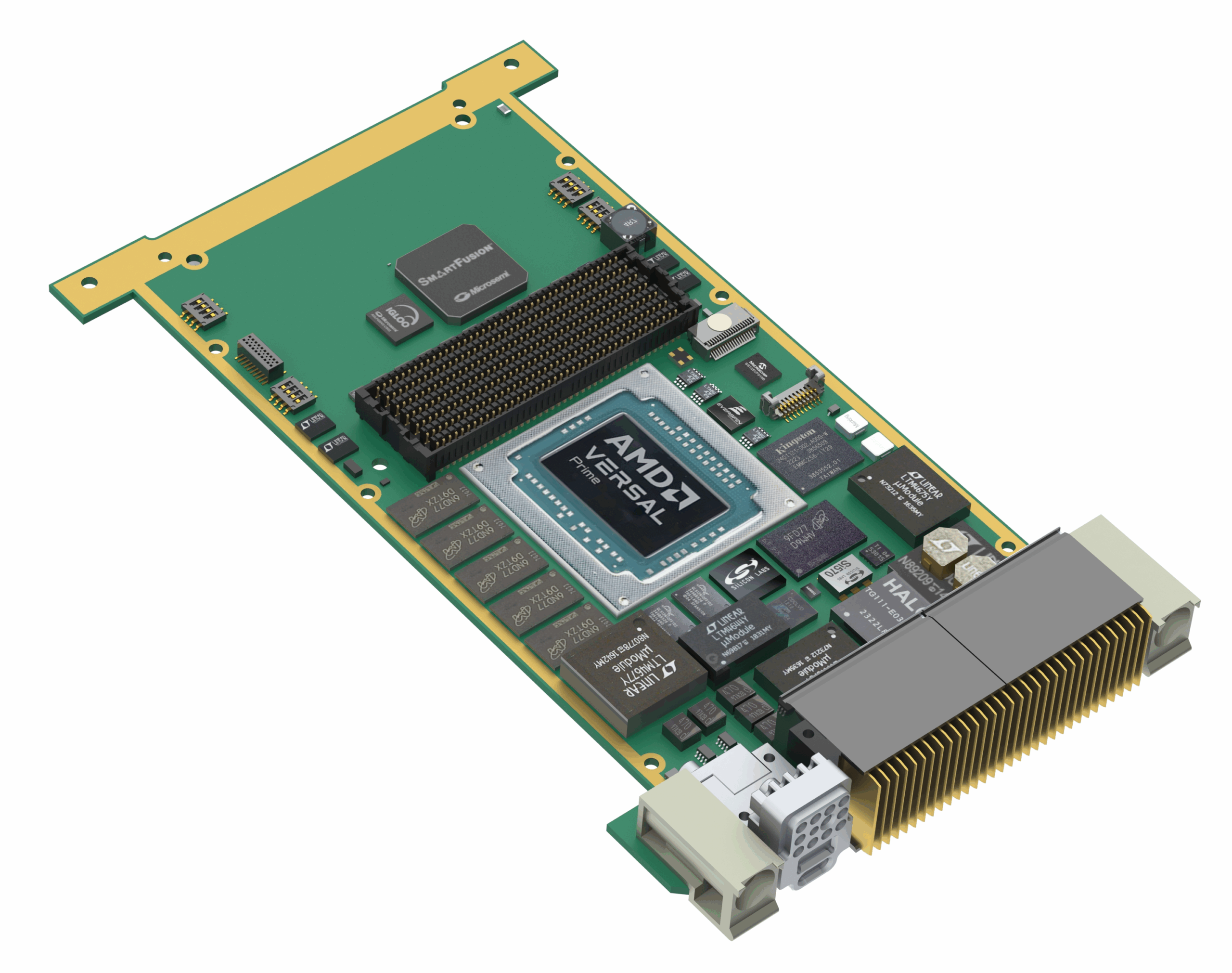

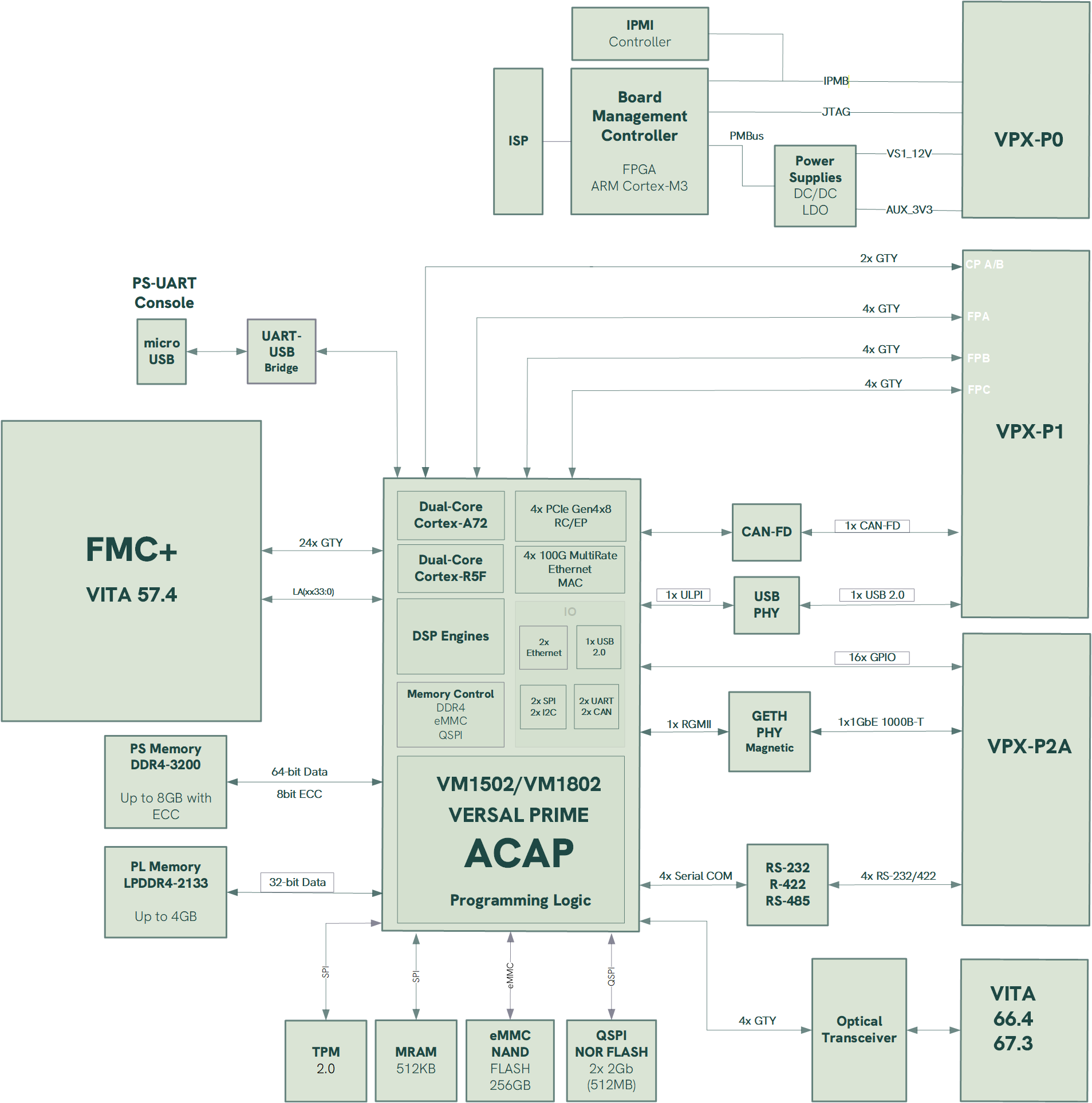

PanaTeQ’s VPX3-VERSA2 is a 3U OpenVPX module based on the AMD Versal Prime Series adaptive SoC , supporting the VM1502 and VM1802 devices in the VFVC1760 package with 44 GTY MGTs.

The Versal Prime device integrates a Dual-Core Arm Cortex-A72 Application Processing Unit (APU), a Dual-Core Arm Cortex-R5F Real-Time Processing Unit (RPU), DSP Engines and a large Programmable Logic fabric in a single device. It also provides high-speed serial transceivers, integrated PCIe and Ethernet resources, on-chip memories and a wide range of peripheral interfaces.

The VPX3-VERSA2 can be configured with up to 8GB of 64-bit DDR4 processing System memory with 8-bit ECC . An additional up to 8GB 32-bit LPDDR4-4133 memory is connected to the Programmable Logic, providing high-bandwidth local memory for signal processing, data acquisition and streaming applications.

A 256GB soldered eMMC device provides local non-volatile mass storage.

For front-end I/O, an on-board VITA 57.4 FMC+ site provides a flexible interface for a wide range of mezzanine cards used in Electronic Warfare, Software Defined Radio, high-speed communications, RADAR, SONAR, LIDAR, video and signal-processing applications.

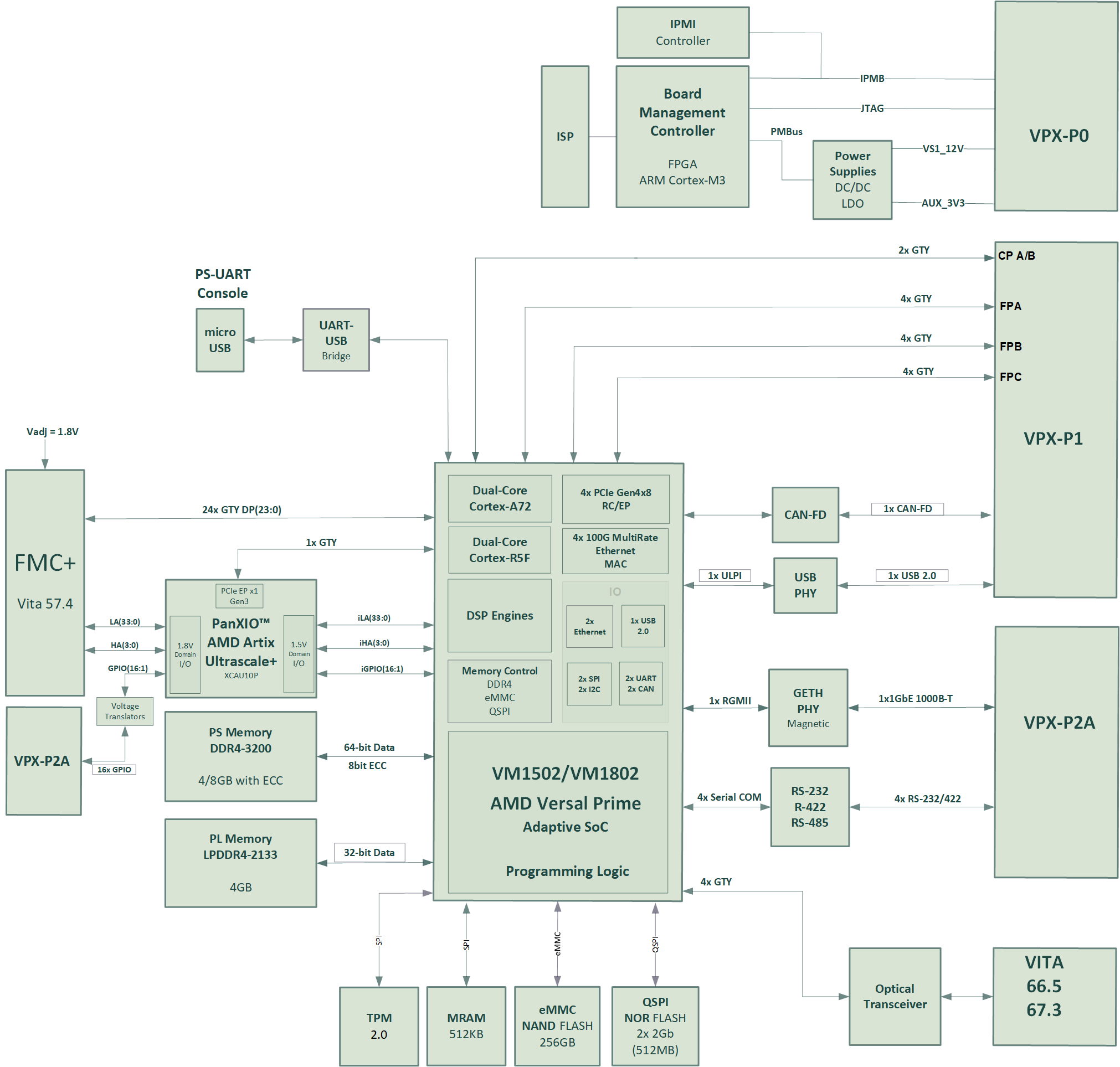

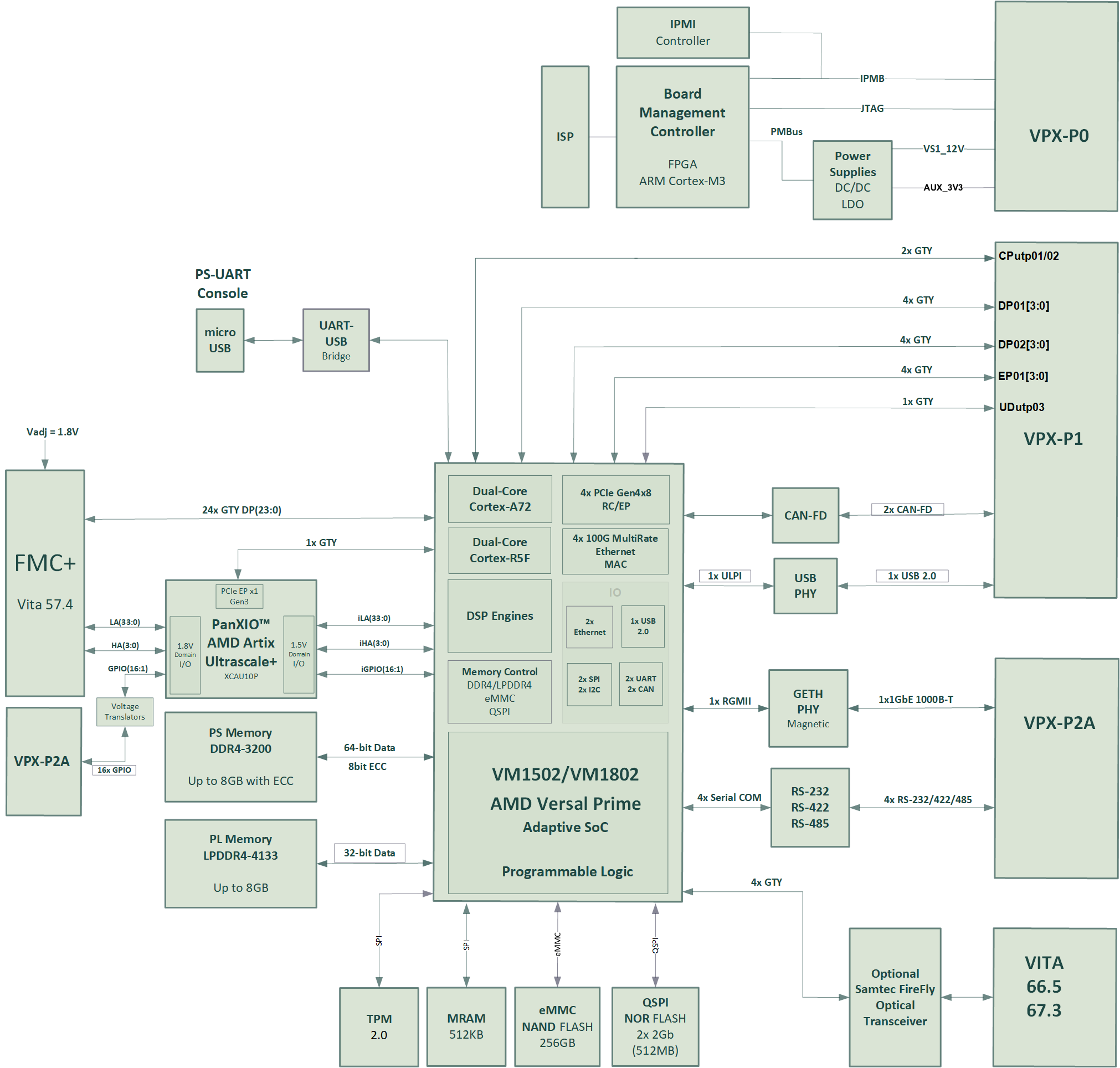

The VPX3-VERSA2 introduces PanXIO— PanaTeQ eXtensible I/O Architecture , a programmable I/O layer based on an AMD Artix UltraScale+ FPGA. PanXIO provides flexible connectivity and electrical adaptation between the FMC+ parallel I/O, VPX backplane GPIOs and the AMD Versal Prime device.

The FMC+ high-speed serial architecture remains optimized for maximum performance, with 24 GTY transceiver lanes directly connected between the FMC+ site and the Versal Prime device , independently from PanXIO.

The board features advanced digitally controlled power converters with PMBus interfaces together with PanaTeQ s Smart Power Management architecture and an independent Board Management Controller for power sequencing, monitoring, diagnostics and system management.

The VPX3-VERSA2 can operate as a Single Board Computer and VPX System
Controller , eliminating the need for an additional SBC in many systems and
proving overall Size, Weight, Power and Cost (SWaP-C).

A large number of peripheral interfaces are available through the VPX backplane, including Gigabit Ethernet, USB 2.0, RS-232/422/485, GPIOs and CAN-FD.

The air-cooled VPX3-VERSA2-PSDK System Development Kit is available for software and FPGA developers and includes the VPX3-VERSA2 module, RTM-VERSA2, laboratory VPX chassis, BSP, FPGA reference designs and required cables.
