3U VPX Rear Transition Module
For VPX3-VERSA2
specifications
- 3U VPX RTM (100 x 81.5 mm)
- VITA 46.0, 46.10, 65.0 specifications compliant
- 1 Inch Rear Panel Width
- nVME PCIe x4 Gen4 M2.2042 Slot
- Dual 100/1000 Base-T RJ-45 with status Leds connectors
- Dual USB 2.0 Type-A stacked connectors
- Micro USB on-board vertical UART for AMD Versal
- Micro USB on-board vertical UART for BMC/IPMIC
- 8x LVDS / 16x GPIOs on-board 20-pin vertical connector
- 4x RS-232/422/CAN on-board 16-pin vertical connector
- Power Monitor (VS1, VS2, VS3) with status LEDs
- On-board Xilinx JTAG Programming/Debuging connector
- On-board Push-Button VPX SysReset
- On-board Socket for Battery sourcing VPX VBAT
Ordering Information
- RTM-VERSA2-A : RTM for VPX3-VERSA2 with 1 inch Front-Panel
Description
The RTM-VERSA2-A is an 3U VPX Rear IO Transition Module for the VPX3-VERSA2 3U VPX AMD Versal Prime module from PanaTeQ.

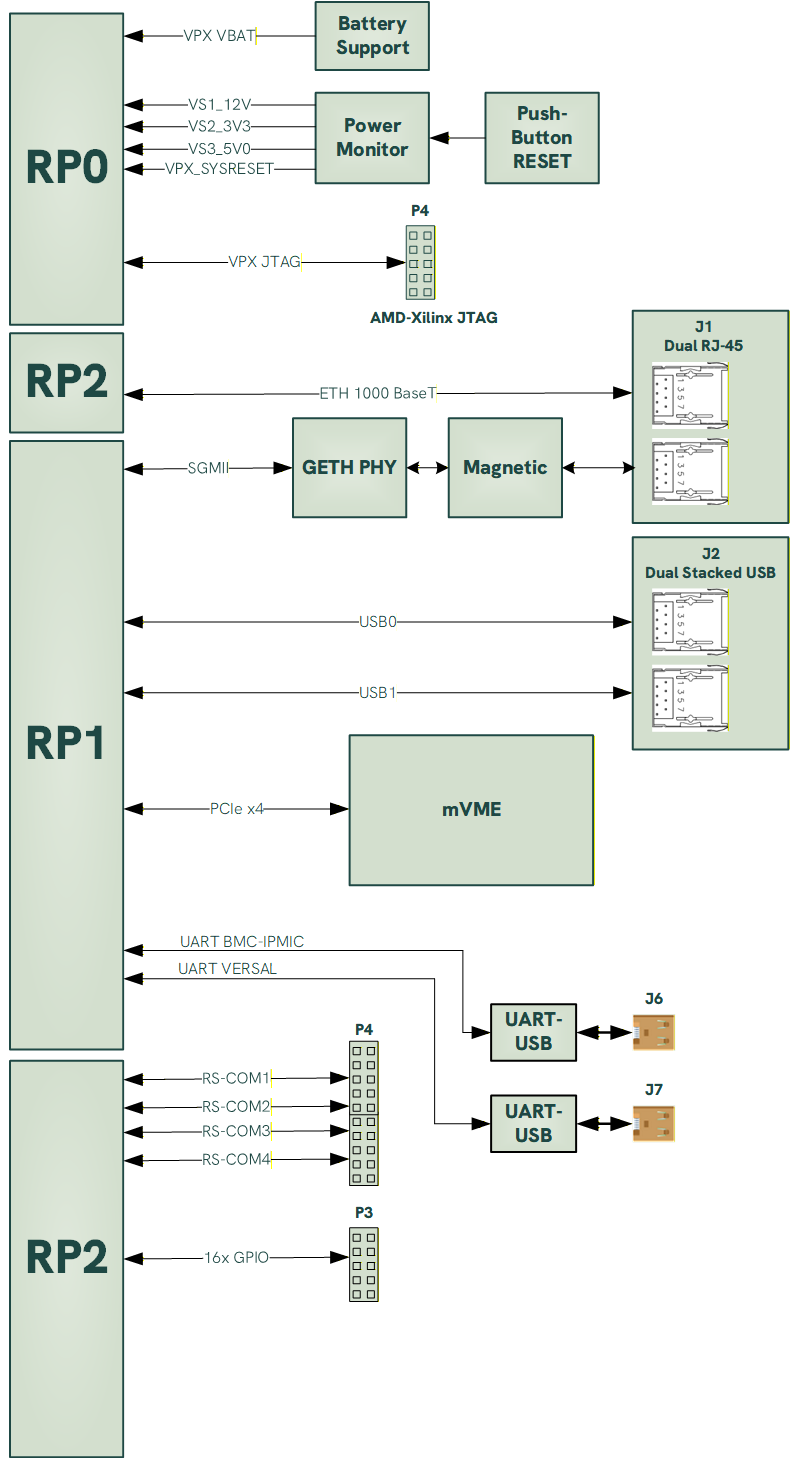

The following interfaces are available through the Rear Panel connectors:
- 2x Ethernet 100/1000BaseT RJ-45 connectors
- 2x USB 2.0 Type-A stacked connectors
Also these interfaces are available using the on-board vertical connectors.
- 1x micro USB UART Versal
- 1x micro USB UART BMC/IPMIC
- 20-pin for 16x GPIOs
- 16-pin 4x RS-232/422/485 + 2x CAN-bus
- 14-pin standard Xilinx JTAG Prog/Debug
- Battery Socket VPX VBAT
- Push-Button VPX SysReset
- Main VPX Power Monitoring (VS1, VS2, VS3)
The air cooled PanaTeQ System Development Kit VPX3-VERSA2-PSDK-A is available for the developers and includes a 4U lab chassis with 3/5 slots, the VPX3 -VERSA2-D1M-AS and RTM-VERSA2-A boards, a Linux BSP, the PanaTeQ reference designs.
