FMC-MXFE-A

• FMC+ Vita 57.4 specification compliant
• JESD024B/C interface up to 20/32.5 Gbps
• 24x TX Lanes
• 24x RX Lanes
• Operates with VAdj = 2.5V to 1.5V
• Air and Conduction Cooled compatible
• Quad ADC Channels (12-bit up to 20GSPS)
• Quad DAC Channels (16-bit up to 28GSPS)
• Uses of 10x 12GHz bandwidth SSMC connectors
• Inputs with Impedance of 50 ohms AC Coupled
• Analog Bandwidth Input Up to TBD GHz
• Reference Clock Input
• FPGA GPIO direct Input or Output
• On-board VCXO

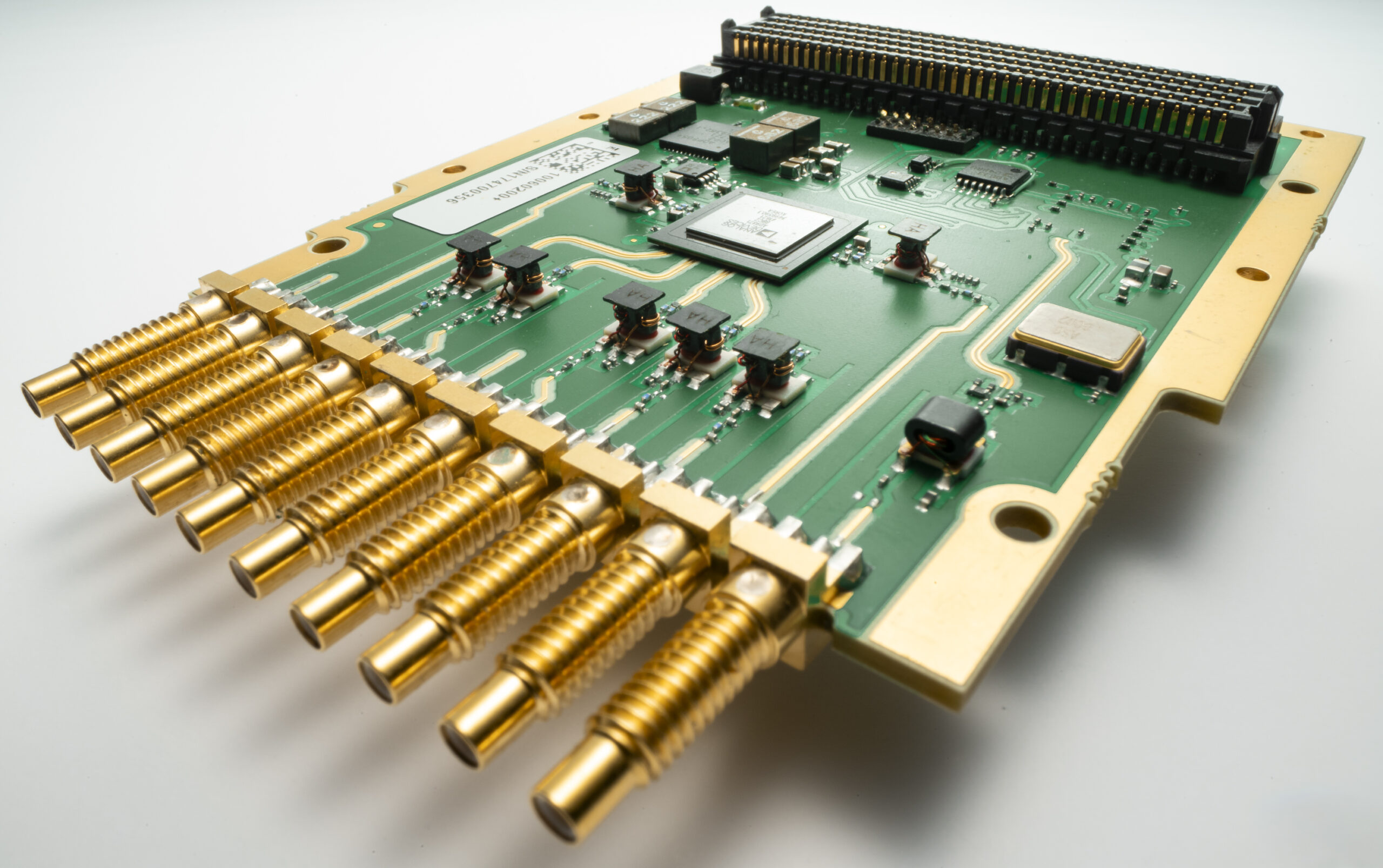

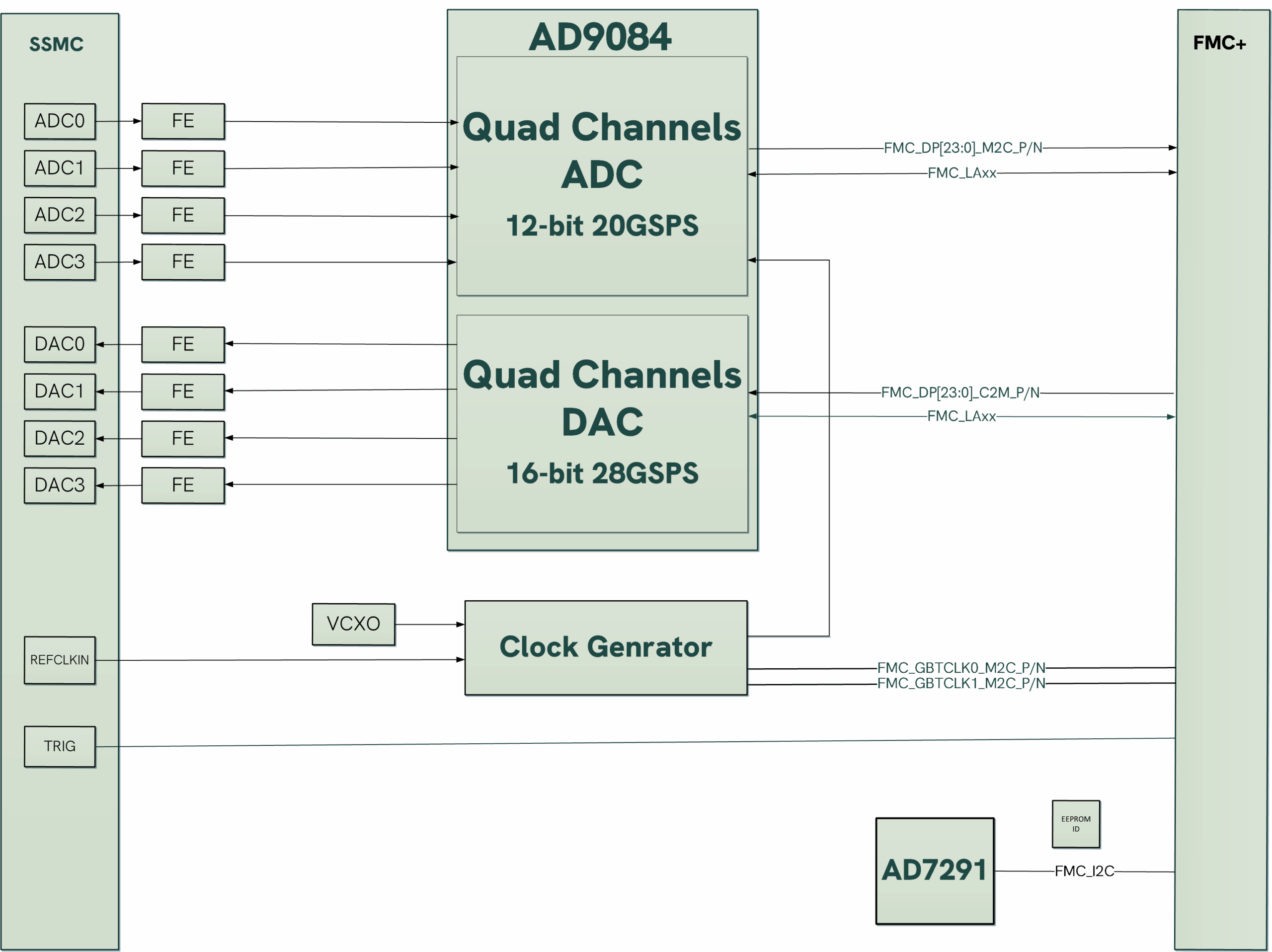

The FMC-MXFE4-A is a FMC+ for High-Speed Data Acquisition applications based on the AD9084 Quad 12-bit ADC and Quad 16-bit DAC from Analog Devices Inc (ADI).

The AD9084 mixed signal front-end (MxFE®) is a highly integrated device with a 16-bit, 28 GSPS maximum sample rate, RF digital-to-analog converter (DAC) core, and 12-bit, 20 GSPS maximum sample rate, RF analog-to-digital converter (ADC) core. The AD9084 supports four transmit channels and four receive channels.

The AD9084 is well suited for applications requiring both wideband ADCs and DACs to process signal(s) having wide instantaneous bandwidth.

The device features a 48 lane, 32.5 Gbps JESD204C or 20 Gbps JESD204B data transceiver port, an on-chip clock multiplier, and a digital signal processing (DSP) capability targeted at either wideband or multiband, direct to RF applications.

The AD9084 also features a bypass mode that allows the full bandwidth capability of the ADC and/or DAC cores to bypass the DSP datapaths.

The device also features low latency loopback and frequency hopping modes targeted at phased array radar systems and electronic warfare applications.

PanaTeQ offers the VPX3-VERSA2-MXFE4-A-CAA-AS development system based on the VPX3-VERSA2 3U VPX VERSAL and the FMC-MXFE4-A-AAA for typical Digital Signal Processing.
