3U VPX Module
AMD VERSAL-RF
VR1602 VR1652
specifications
- 3U VITA 46.0, 46.4, 46.6, 65.0 Compliant
- SOSA Aligned version VPX3-VERSA-RF-AS
- AMD VERSAL RF Series based
- VR1602/VR1652 VSVA2488 Package
- 16x 14-bit 8GSPS or 4x 14-bit 32GSPS ADC
- 8x 14-bit 16GSPS DAC
- Supports direct RF sampling up to 18 GHz bandwidth
- Dual Core Arm A72 up to 1.7 GHz
- Dual Core Arm R5F up to 750 MHz
- AI Engine Tiles 126, DSP Engines 2256
- Up to 8GB LPDDR5X 64-bit PS memory with ECC
- Up to 8GB LPDDR5X 64-bit PL memory with ECC
- 512MB (2x 2Gb) QSPI NOR
- eMMC 256GB
- MRAM 512KB
- 12x MGTY on VPX-P1, PCIe Up to Gen4 support
- 2x ETH 1000Base-X/SGMII on VPX-P1 Control Plane
- 16x GPIOs on VPX-P2
- 1x ETH 1000Base-T on VPX-P2
- 4x RS232 or 2x Full-Duplex RS422 on VPX-P2
- 1x USB 2.0 on VPX-P1
- Optional 4x Full-Duplex Optical Links VITA 66.4
- Optional Front-End connector or Backplane VITA 67.3 10x nanoRF
- Smart Power Management using DC/DC with PMBus
- Board Management Controller ARM Cortex-M3 based
- VPX System and IPMI controllers
- Air Cooled and Conduction Cooled
- KVPX Connectors in option
Typical Applications
- MILCOM, Software Defined Radio, MIMO
- Electromagnetic Spectrum Operations (EMSO)
- Electronic Warfare, Signal Intelligence
- LIDAR/RADAR/SONAR Systems
Description

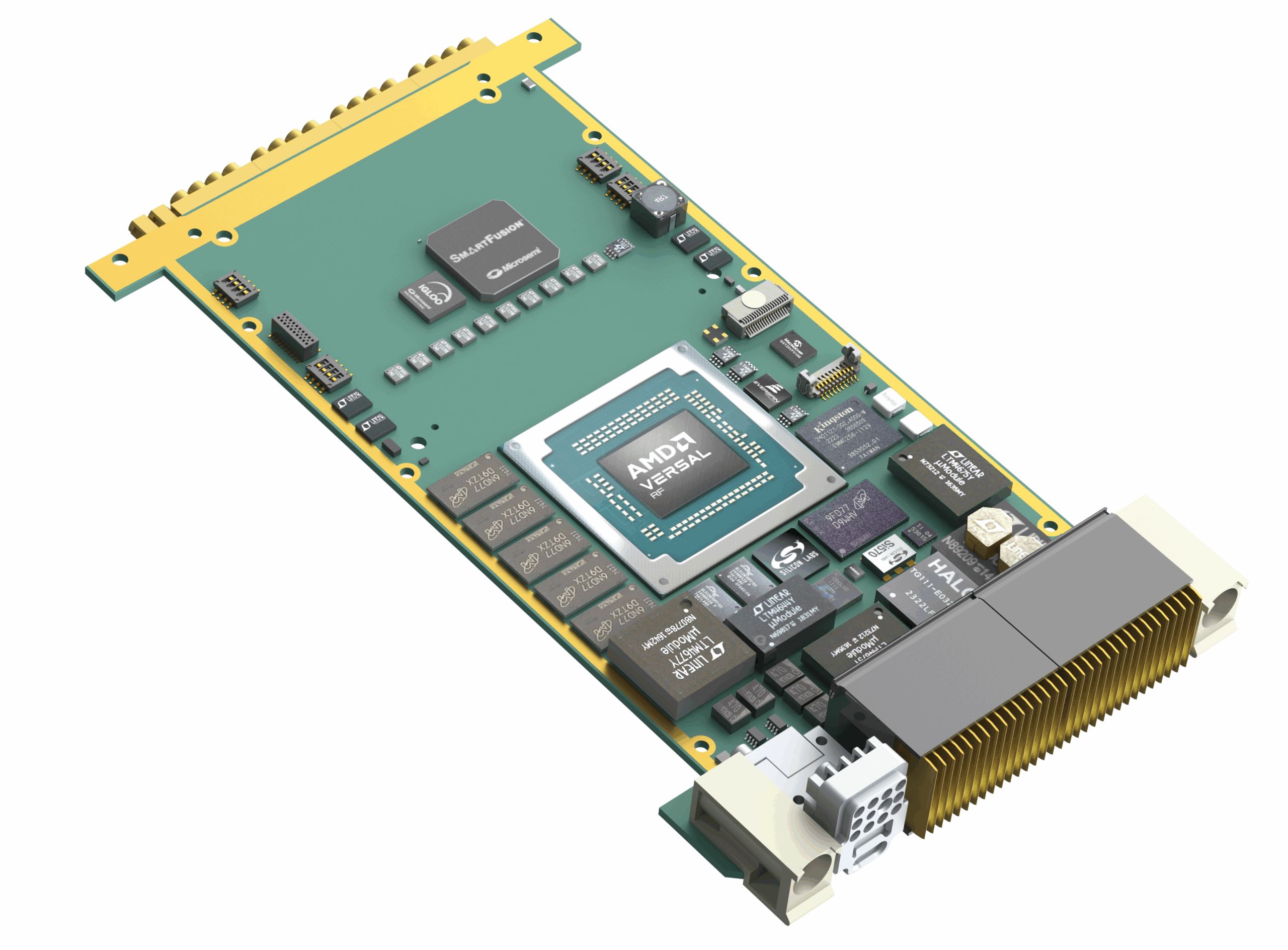

PanaTeQ’s VPX3-VERSA-RF-A is a 3U VPX module based on the VERSAL RF Adaptative Compute Acceleration Platform (ACAP) device from AMD. It support the RF series VR1602 or VR1652 devices.

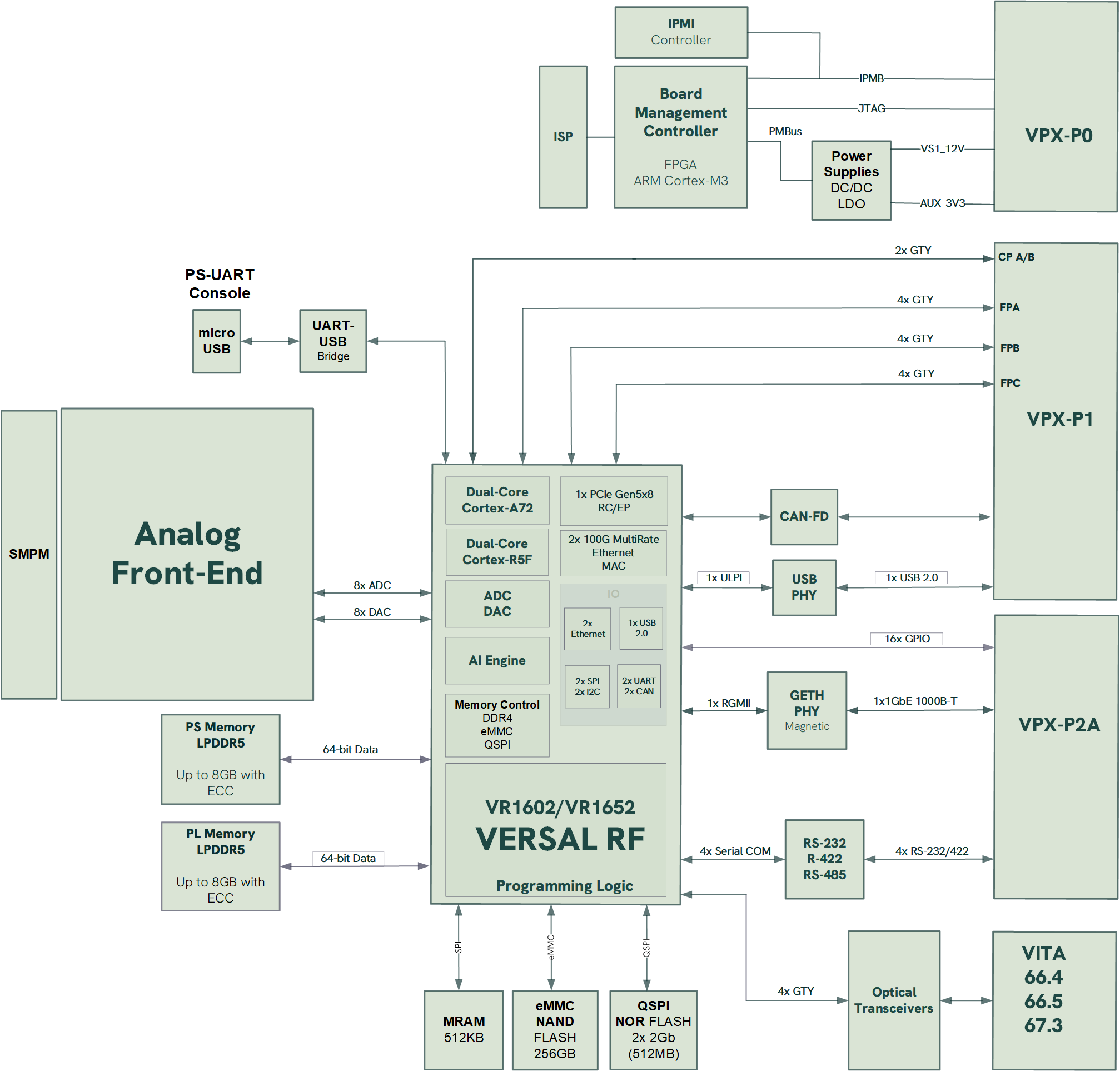

The VERSAL RF integrate a Dual-core ARM Cortex-A72 based Application Processing Unit (APU), a Dual-core ARM Cortex-R5F based Real-Time Processing Unit (RPU), AI Engines, DSP Engines and a large Programmable Logic (PL) in a single device. It also includes on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.
The VERSAL RF integrate up to eight 14-bit (with calibration), 32 GSPS RF-ADCs with hard DUC and DDC IP enable fast, high resolution, flexible wide-spectrum characterization.
Eight 14-bit (with calibration), 16 GSPS RF-DACs provide RF transmit functions.
18 GHz I/O instantaneous bandwidth enables a wider input frequency pipe.
The board can be ordered with different versions of the VERSAL RF family of devices, coupled up to 8GB 64-bit LPDDR5X Processing Memory with ECC.
Up tp 8GB 64-bit of LPDDR5X is also available as the Programmable Logic Memory, allowing data signal processing.
256GB of soldered eMMC managed NAND Flash is available for local data storage.
The VPX3-VERSA-RF-A uses advanced DC/DC power modules from Linear Technology using PMBus and PanaTeQ’s Smart Power Management technology.
The board can act as a Single Board Computer in the VPX system. When the VPX3-VERSA-RF-A is System Controller, there is no need to add any SBC in the VPX System, improving Size, Weight, Power and Cost (SWaP-C).
A large number of the peripherals are available on the VPX backplane: 1x ETH 1000Base-T, 1x USB 2.0, 4x RS-232 or 2x Full-Duplex RS-422, 16x GPIOs, 2x CAN-FD.
The air cooled PanaTeQ System Development Kit VPX3-VERSA-RF-A-PSDK is offered for the developers.
