• 3U VITA 46.0, 46.4, 46.6, 65.0 Compliant
• Optional SOSA Aligned version VPX3-VERSA2S-MxFE4
• 4T4R AD9084 Apollo MxFE Quad, 16-Bit, 28 GSPS RF DAC and Quad, 12-Bit, 20 GSPS RF ADC
• AMD VERSAL Prime Series based
• VM1502/1802 VSVC1760 Package
• Dual Core Arm A72 up to 1.7 GHz
• Dual Core Arm R5F up to 750 MHz
• DSP Engines up to 1968
• 4 or 8GB DDR4-3200 64-bit PS memory with 8-bit ECC
• 2GB LPDDR4-2133 32-bit PL memory
• 512MB (2x 2Gb) QSPI NOR, eMMC 256GB, MRAM 512KB
• 12x MGTY on VPX-P1, PCIe Up to Gen4 support
• 2x ETH 1000Base-X/SGMII on VPX-P1 Control Plane
• 18x GPIOs on VPX-P2
• 1x ETH 1000Base-T on VPX-P2
• 4x RS232 or 2x Full-Duplex RS422 on VPX-P2
• 1x USB 2.0 on VPX-P1
• FMC+ VITA 57.4 site with 68x IOs, up to 24x MGTs.
• Optional 4x Full-Duplex Optical Links VITA 66.4
• Optional 10x NanoRF VITA 67.3
• Smart Power Management using DC/DC with PMBus
• Board Management Controller ARM Cortex-M3 based
• VPX System and IPMI controllers
• Air Cooled and Conduction Cooled
• KVPX Connectors in option

PanaTeQ’s VPX3-VERSA2-MxFE4 is a 3U VPX OpenVPX/SOSA module based on the VERSAL Prime Adaptive SoC device from AMD and one AD9084 Apollo MxFE device from Analog Devices for a broad range of applications such as Software Defined Radio, MILCOM, massive MIMO, Phase Array Radar and Electronic Warfare.

The AD9084 mixed signal front-end (MxFE®) is a highly inte-grated device with a 16-bit, 28 GSPS maximum sample rate, RF digital-to-analog converter (DAC) core, and 12-bit, 20 GSPS maximum sample rate, RF analog-to-digital converter (ADC) core. The AD9084 supports four transmit channels and four receive channels.

The AD9084 is well suited for applications requiring both wide-band ADCs and DACs to process signal(s) having wide instan-taneous bandwidth.

The AD9084 are well suited for applications requiring both wide-band ADCs and DACs to process signal(s) having wide instan-taneous bandwidth.

These devices features a 48 lane, 32.5 Gbps JESD204C or 20 Gbps JESD204B data transceiver port, an on-chip clock multiplier, and a digital signal processing (DSP) capability targeted at either wideband or multiband, direct to RF applications.

The AD9084 also features a bypass mode that allows the full bandwidth capability of the ADC and/or DAC cores to bypass the DSP datapaths

The VERSAL Prime integrates a Dual-core ARM Cortex-A72 based Application Processing Unit (APU), a Dual-core ARM Cortex-R5F based Real-Time Processing Unit (RPU), DSP Engines and a large Programmable Logic (PL) in a single device.  It also includes on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.

The board can be ordered with different versions of the VERSAL family of devices, coupled up to 4 or 8GB 64-bit DDR4-3200   Processing Memory with 8-bit ECC.

2GB 32-bit of LPDDR4-2133 is also available as the Programmable Logic Memory, allowing data streaming applications such as video   CODEC and signal processing. 256GB of soldered eMMC managed NAND Flash is available for local data storage.

The VPX3-VERSA2 uses advanced DC/DC power modules from Linear Technology using PMBus and PanaTeQ’s Smart Power Management technology.

The board can act as a Single Board Computer in the VPX system. When the VPX3-VERSA2 is System Controller, there is no need to add any SBC in the VPX System, improving Size, Weight, Power and Cost (SWaP-C).

A large number of the peripherals are available on the VPX backplane: 1x ETH 1000Base-T, 1x USB 2.0, 4x RS-232 or 2x Full-Duplex RS-422, 16x GPIOs, 2x CAN-FD.

• 3U VITA 46.0, 46.4, 46.6, 65.0 Compliant
• Optional SOSA Aligned version VPX3-VERSA2S
• AMD VERSAL Prime Gen1 Series based
• VM1502/1802 VSVC1760 Package
• Dual Core Arm A72 up to 1.7 GHz
• Dual Core Arm R5F up to 750 MHz
• DSP Engines up to 1968
• 4GB or 8GB DDR4-3200 64-bit PS memory with 8-bit ECC
• 4GB LPDDR4-2133 32-bit PL memory
• 512MB (2x 2Gb) QSPI NOR
• 256 GB eMMC
• 512KB MRAM
• 12x MGTY on VPX-P1, PCIe Up to Gen4 support
• 2x ETH 1000Base-X/SGMII on VPX-P1 Control Plane
• 16x GPIOs on VPX-P2A
• 1x ETH 1000Base-T on VPX-P2A
• 4x RS232 or 2x Full-Duplex RS422 on VPX-P2A
• 1x USB 2.0 on VPX-P1
• FMC+ VITA 57.4 site with 68x IOs, up to 24x MGTs.
• Optional VITA 66.4 Full-Duplex Optical Interfaces for 40Gb (4x 10Gbps) or 100Gb (4x 25Gbps) with 10 nanoRF VITA67.3
• Smart Power Management using DC/DC with PMBus
• Board Management Controller ARM Cortex-M3 based
• VPX System and IPMI controllers
• Air Cooled and Conduction Cooled
• KVPX Connectors in option

PanaTeQ’s VPX3-VERSA2 is a 3U OpenVPX module based on the VERSAL Adaptative Compute Acceleration Platform (ACAP) GEN1 device from Xilinx. It support the Prime series VM1502 or VM1802

The VERSAL integrates a Dual-core ARM Cortex-A72 based Application Processing Unit (APU), a Dual-core ARM Cortex-R5F based Real-Time Processing Unit (RPU), DSP Engines and a large Programmable Logic (PL) in a single device.  It also includes on-chip memory, external memory interfaces, and a rich set of peripheral connectivity interfaces.

The board can be ordered with different versions of the VERSAL family of devices, coupled up to 4 or 8GB 64-bit DDR4-3200   Processing Memory with 8-bit ECC.

4GB 32-bit of LPDDR4-2133 is also available as the Programmable Logic Memory, allowing data streaming applications such as video   CODEC and signal processing. 256GB of soldered eMMC managed NAND Flash is available for local data storage.

The VPX3-VERSA2 uses advanced DC/DC power modules from Linear Technology using PMBus and PanaTeQ’s Smart Power Management technology.

For front-end I/O  interfaces, an on-board FMC+ site compliant to the Vita 57.4 HPC standard with 68 SE IO (34 Diff Pairs) and 24 MGTs, allowing a wide range of applications such as EW warfare systems, High-Speed Communication, LIDAR/RADAR/SONAR.

The board can act as a Single Board Computer in the VPX system. When the VPX3-VERSA2 is System Controller, there is no need to add any SBC in the VPX System, improving Size, Weight, Power and Cost (SWaP-C).

A large number of the peripherals are available on the VPX backplane: 1x ETH 1000Base-T, 1x USB 2.0, 4x RS-232 or 2x Full-Duplex RS-422, 16x GPIOs, 1x CAN-FD.

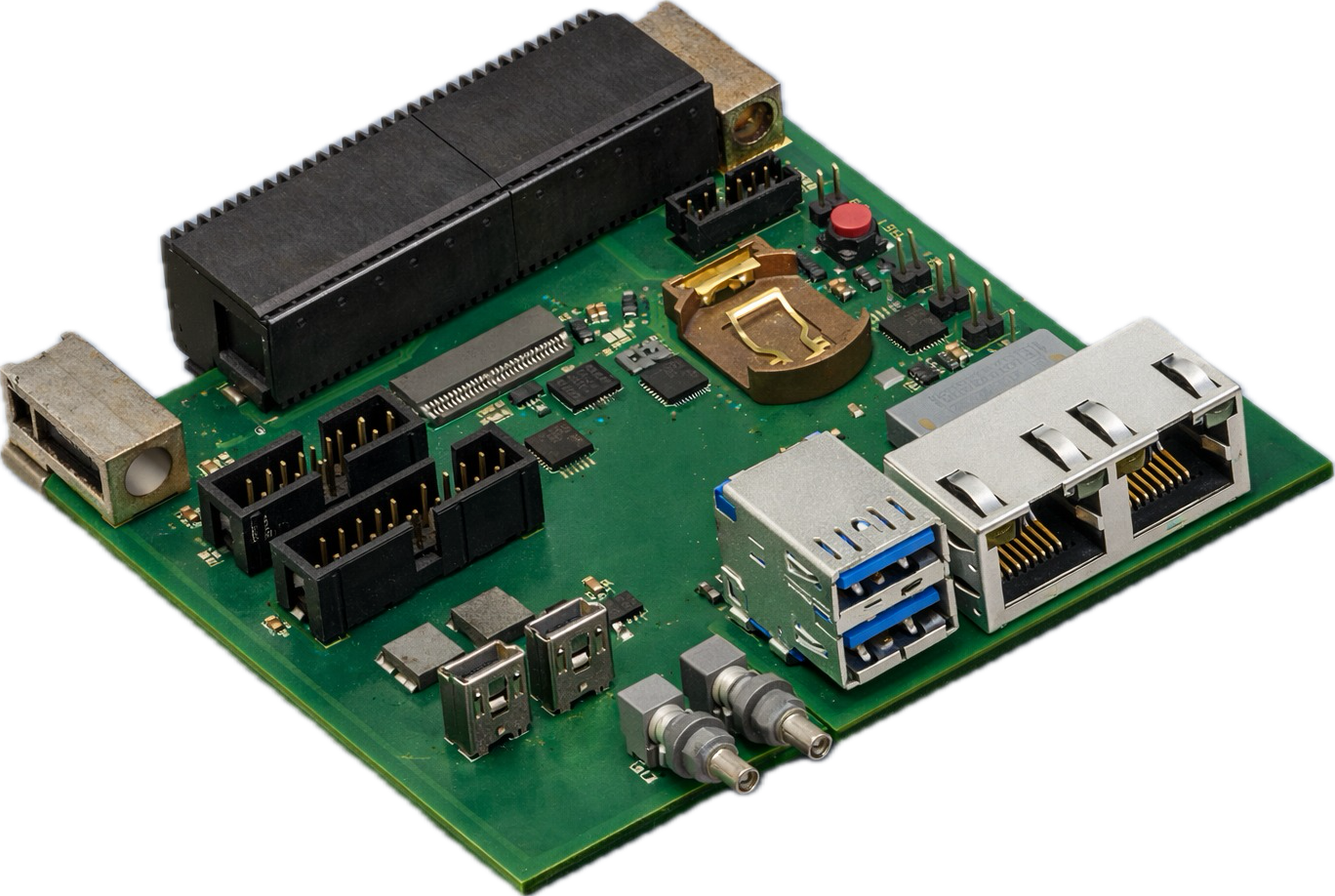

The air cooled PanaTeQ System Development Kit VPX3-VERSA2-PSDK is available for the developers and includes a lab chassis with 3-slots Centralized backplane, the VPX3-VERSA2-A1M-AS and RTM-VERSA2 boards, a PentaLinux BSP, PanaTeQ FPGA Design References and cables.
