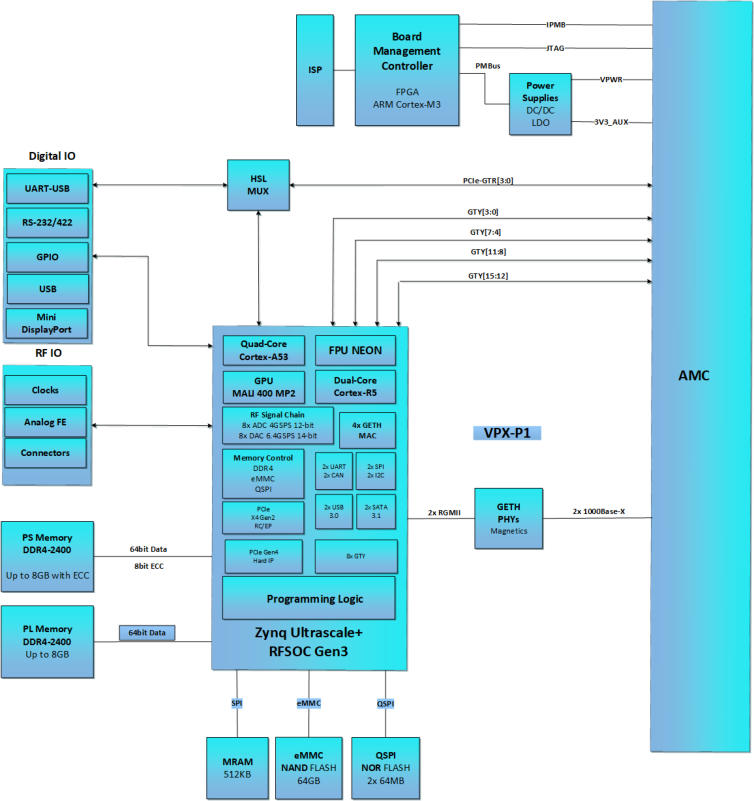

PanaTeQ’s AMC-RFSOC is an AMC module based on the Zynq UltraScale+ RFSoC device from Xilinx. The Zynq UltraScale+ RFSoC integrates a Quad-core ARM Cortex-A53 based Application Processing Unit (APU), a Dual-core ARM Cortex-R5 based Real-Time Processing Unit (RPU) and an UltraScale+ Programmable Logic (PL) in a single device. It also integrates a RF Data Converter Subsystem that provides 8x 12-bit, 4GS/s ADC and 8x 14-bit 6.4GS/s DAC, available on RF board front connectors.   The first version of the board will be equipped with  a XCZU25DR-1FFVE1156 device tightly coupled to up to 8GB of 64-bit with 8-bit ECC of DDR4-2400 Processing Memory. Up to 4GB 32-bit of DDR4-2400 is available as the Programmable Logic Memory, allowing data streaming applications signal processing.   . .
